When installing ESXi and enable iSCSI datastores with multipath round robin the performance could be poor. VMware will use the other path if it reaches 1000 IOPS. This is the default setting.

So I have done some measurements.

iSCSI FreeNAS 9.3. 4 disks in striped mirror. logging and caching on SSD mirror.

zpool status

  pool: sata-disk
 state: ONLINE
  scan: scrub repaired 0 in 2h59m with 0 errors on Sun May  3 09:59:59 2015
config:

	NAME                                            STATE     READ WRITE CKSUM
	sata-disk                                       ONLINE       0     0     0
	  mirror-0                                      ONLINE       0     0     0
	    gptid/f8c7b55e-4ef0-11e4-98c0-0cc47a0917b6  ONLINE       0     0     0
	    gptid/f92b9f6b-4ef0-11e4-98c0-0cc47a0917b6  ONLINE       0     0     0
	  mirror-2                                      ONLINE       0     0     0
	    gptid/1558a0b6-4ef2-11e4-98c0-0cc47a0917b6  ONLINE       0     0     0
	    gptid/15b29c40-4ef2-11e4-98c0-0cc47a0917b6  ONLINE       0     0     0
	logs
	  mirror-1                                      ONLINE       0     0     0
	    da0p1                                       ONLINE       0     0     0
	    da4p1                                       ONLINE       0     0     0
	cache
	  da4p2                                         ONLINE       0     0     0
	  da0p2                                         ONLINE       0     0     0
	spares
	  gptid/fac4aa65-4ef0-11e4-98c0-0cc47a0917b6    AVAIL

errors: No known data errors

The storage box is connected with 2x 1Gb ethernet to the switch. Each network connection sits in a VLAN.

The hypervisor is connected with 2x 1Gb ethernet to the switch. Multipathing is done using 2 VMkernel adapters connected to a VLAN and specifically bound to a physical NIC.

Get the available UIDs

esxcli storage core path list

iqn.1998-01.com.vmware:supermicro1-1c5f6261-00023d000008,iqn.2011-03.nl.helux.istgt:target1,t,2-t10.FreeBSD_iSCSI_Disk______001517bc5bf6001_________________
   UID: iqn.1998-01.com.vmware:supermicro1-1c5f6261-00023d000008,iqn.2011-03.nl.helux.istgt:target1,t,2-t10.FreeBSD_iSCSI_Disk______001517bc5bf6001_________________
   Runtime Name: vmhba38:C3:T0:L1
   Device: t10.FreeBSD_iSCSI_Disk______001517bc5bf6001_________________
   Device Display Name: FreeBSD iSCSI Disk (t10.FreeBSD_iSCSI_Disk______001517bc5bf6001_________________)
   Adapter: vmhba38
   Channel: 3
   Target: 0
   LUN: 1
   Plugin: NMP
   State: active
   Transport: iscsi
   Adapter Identifier: iqn.1998-01.com.vmware:supermicro1-1c5f6261
   Target Identifier: 00023d000008,iqn.2011-03.nl.helux.istgt:target1,t,2
   Adapter Transport Details: iqn.1998-01.com.vmware:supermicro1-1c5f6261
   Target Transport Details: IQN=iqn.2011-03.nl.helux.istgt:target1 Alias= Session=00023d000008 PortalTag=2
   Maximum IO Size: 131072

esxcli storage nmp psp roundrobin deviceconfig get -d t10.FreeBSD_iSCSI_Disk______001517bc5bf6001_________________

   Byte Limit: 10485760
   Device: t10.FreeBSD_iSCSI_Disk______001517bc5bf6003_________________
   IOOperation Limit: 1000
   Limit Type: Default
   Use Active Unoptimized Paths: false

Set the new IOPS value using the following command:

esxcli storage nmp psp roundrobin deviceconfig set -d t10.FreeBSD_iSCSI_Disk______001517bc5bf6001_________________ -t iops -I 1

In this case it is value 1. I have bench-marked 4 values (1000 (default), 100, 10 and 1)

To make it last a reboot:

esxcli storage nmp satp rule add -s "VMW_SATP_ALUA" -P "VMW_PSP_RR" -O iops=1 -c "tpgs_on" -M "iSCSI Disk" -e "FreeNAS iSCSI custom SATP Claimrule"

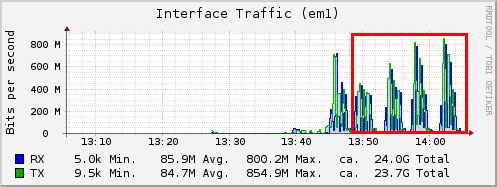

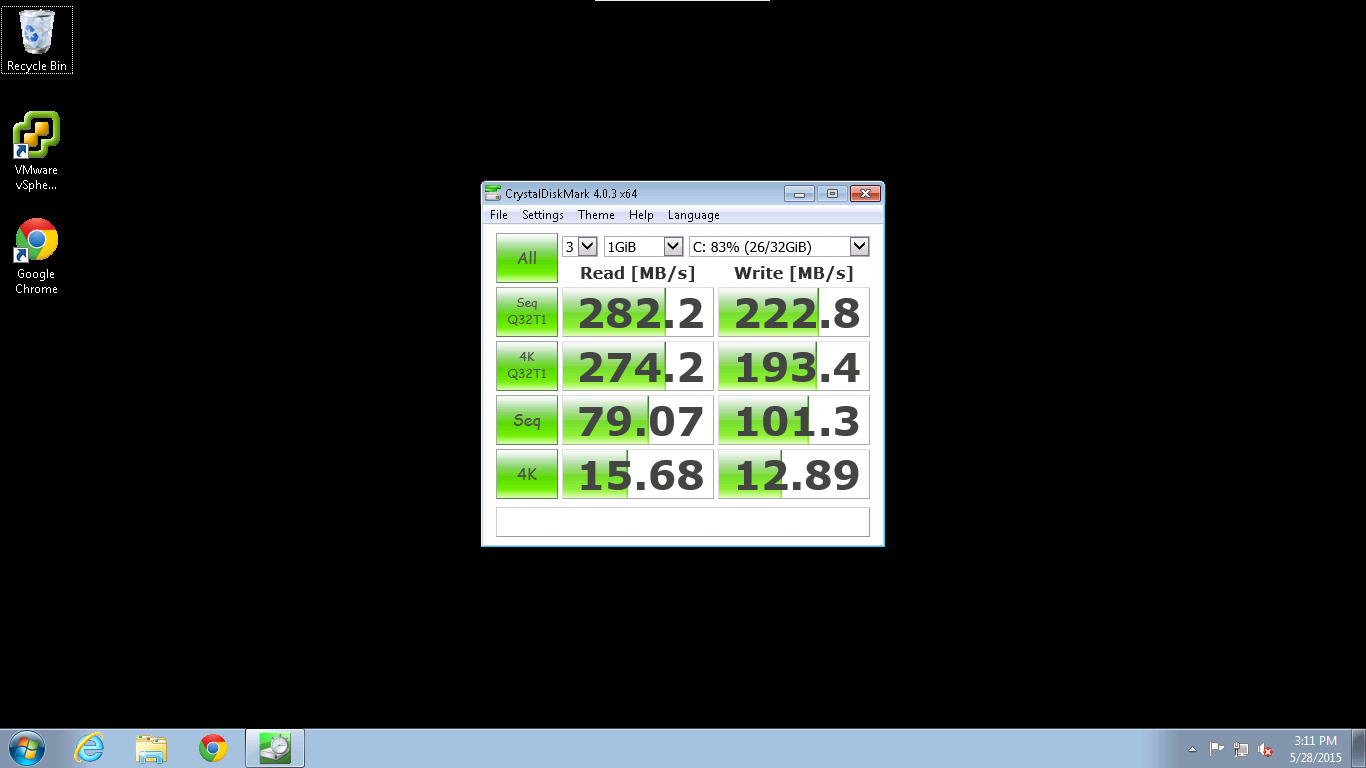

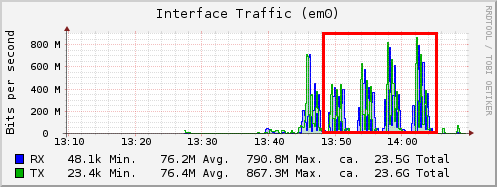

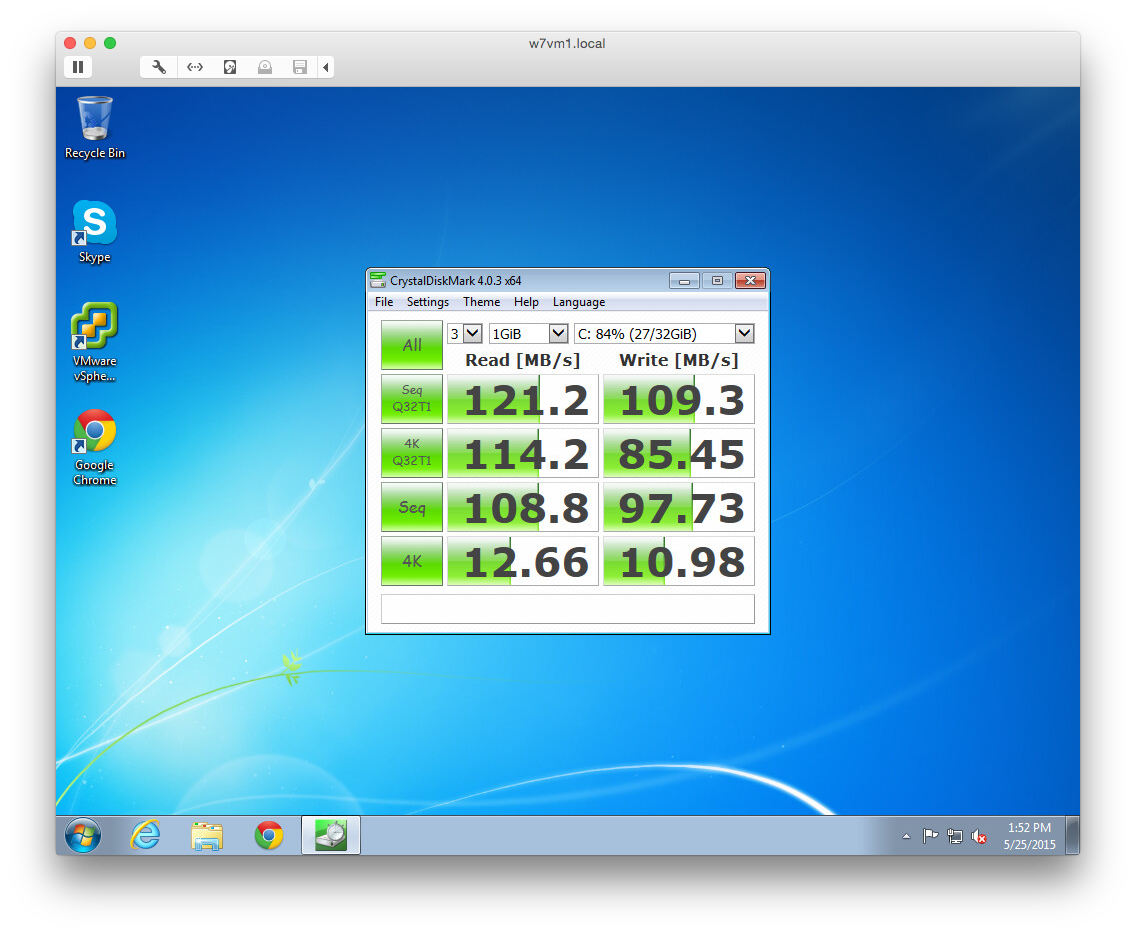

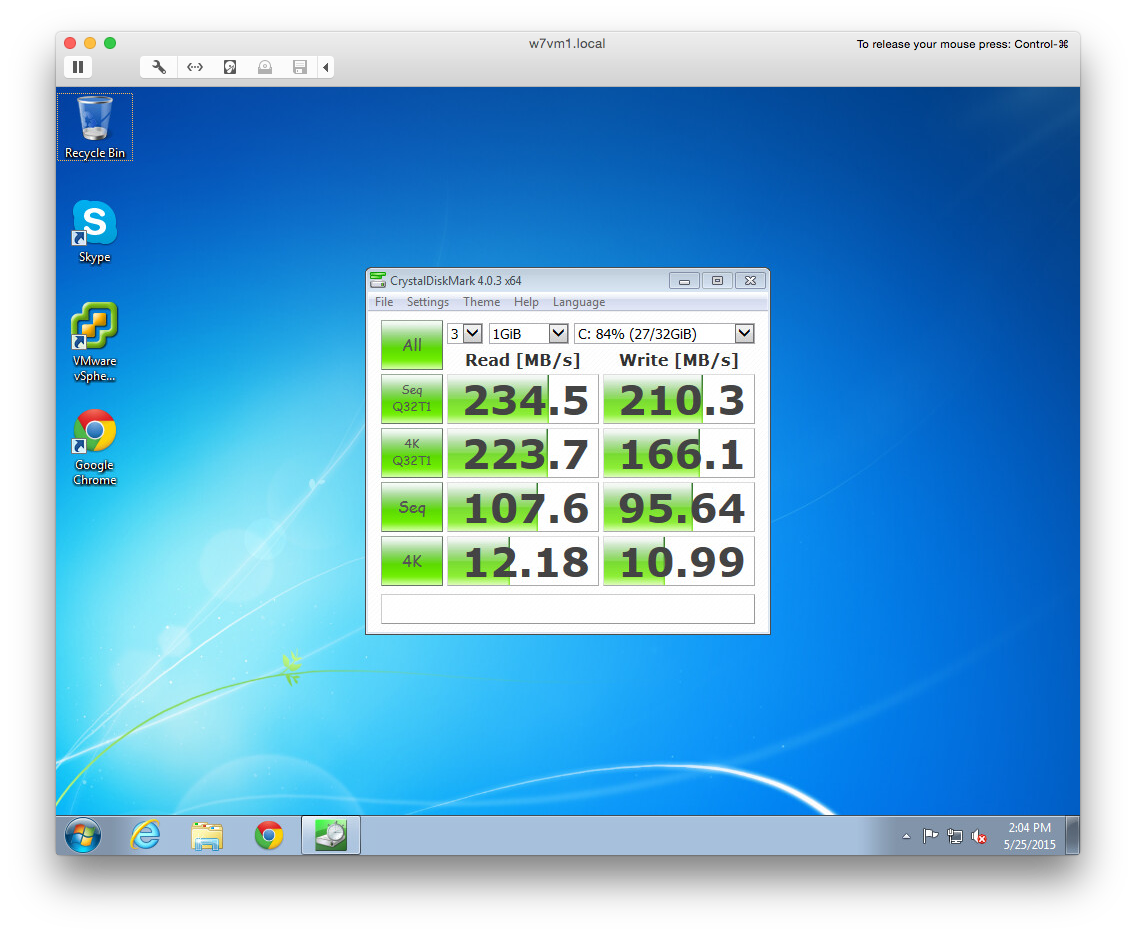

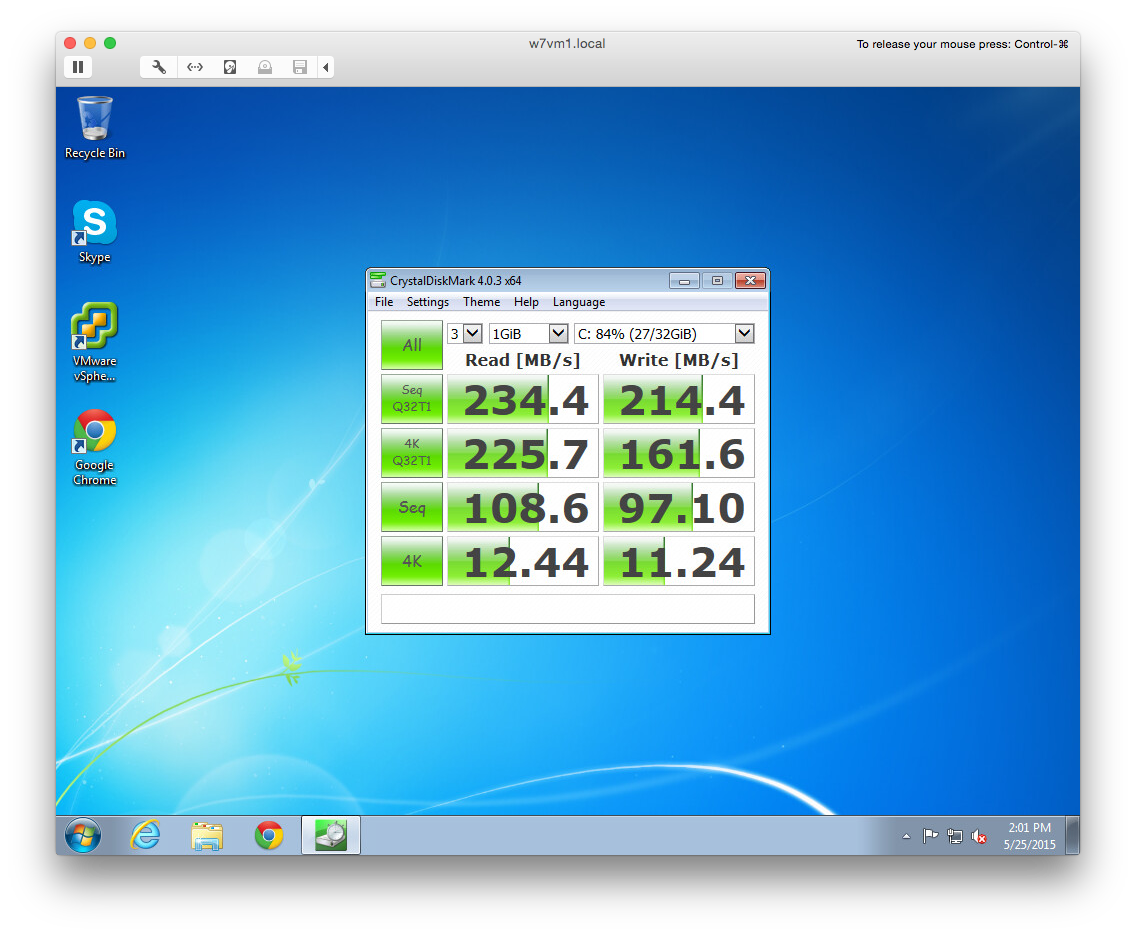

Default 1000 IOPS: 100 IOPS: 10 IOPS: 1 IOPS: Network usage graphs from FreeNAS:

storage path1 (iscsi1 VLAN) storage path2 (iscsi2 VLAN)

The 1 IOPS setting is the best in my configuration.
